Amine filter units for oil and gas are specialized systems designed to remove hydrogen sulfide (H2S) from hydrocarbon streams, especially natural gas and crude oil. H2S is a highly toxic and corrosive gas that must be removed from hydrocarbon products to meet safety and environmental regulations. Here's an overview of amine filter units for H2S removal in the oil and gas industry:
Key Components and Functions:
Amine Contactors: Amine contactors, often packed columns, are where the amine solution comes into contact with the H2S-containing hydrocarbon stream. The amine absorbs H2S from the hydrocarbon gas or liquid.
Amine Solution: The amine solution used in the system acts as a selective absorbent for H2S. Common amines used include monoethanolamine (MEA), diethanolamine (DEA), and methyldiethanolamine (MDEA).
Amine Regeneration Unit: After absorbing H2S, the amine solution needs to be regenerated by stripping the H2S from the amine. This is typically done in a separate unit called the amine regeneration unit.

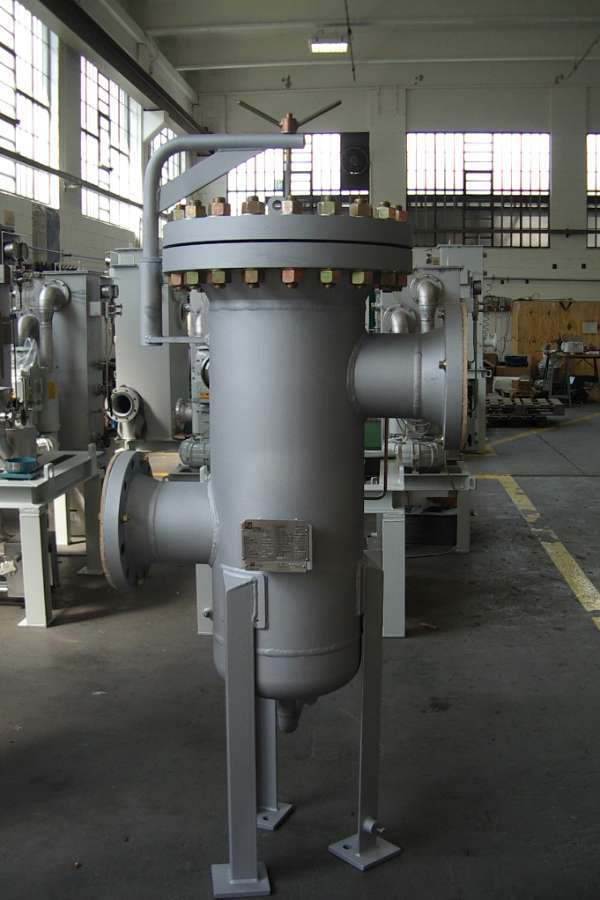

Amine Filters: Amine filters are an integral part of the amine regeneration unit. They are designed to capture any particulate matter or solid contaminants that may have carried over from the contactor. These filters help ensure the purity of the regenerated amine.
Heat Exchangers: Heat exchangers are used to control the temperature of the amine solution in the regeneration process. They transfer heat between the rich (H2S-laden) and lean (H2S-free) amine streams.
Scrubber or Stripper: A scrubber or stripper is used to remove the H2S gas from the rich amine solution, leaving the lean amine ready for reuse.
Applications:
Natural Gas Processing: In natural gas processing plants, amine filter units are used to remove H2S from natural gas streams, making the gas safe for transportation, distribution, and use. This process is often referred to as amine gas sweetening.
Oil Refineries: H2S removal is crucial in oil refineries to meet environmental and safety standards. Amine filters are used to ensure the purity of amine solutions used in hydroprocessing units, such as hydrotreaters and hydrocrackers.
Biogas and Landfill Gas: Amine filter units are employed in the purification of biogas and landfill gas to remove H2S, making them suitable for power generation and other applications.
Benefits:
Safety: H2S is highly toxic, and its removal is crucial to prevent harm to personnel and to comply with safety regulations.
Environmental Compliance: H2S removal is essential to meet environmental regulations regarding emissions and the sulfur content of hydrocarbon products.
Corrosion Prevention: The removal of H2S helps prevent corrosion of equipment and pipelines, which can be caused by the formation of sulfur compounds.
Product Quality: Ensures the quality and value of natural gas and refined products by reducing sulfur content and meeting product specifications.
Efficiency: H2S removal enhances the efficiency and reliability of downstream processes and equipment.
In summary, amine filter units for H2S removal play a critical role in the oil and gas industry by ensuring the safety, environmental compliance, and quality of hydrocarbon products. They are a fundamental part of gas sweetening processes and are essential for protecting equipment and personnel.
